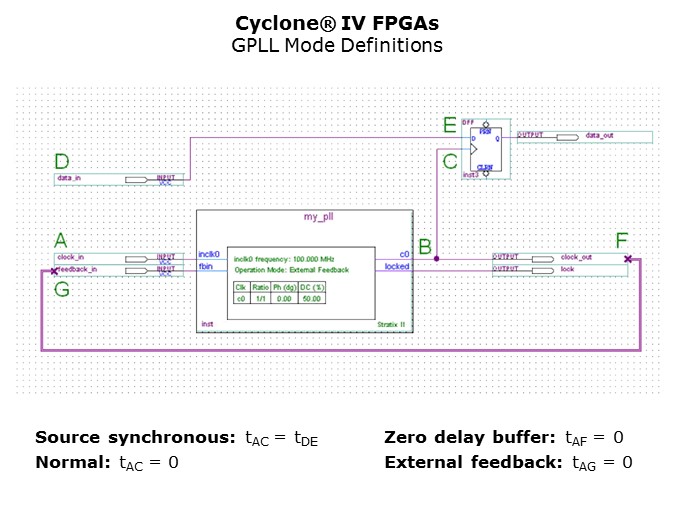

The data path of each of the PLL modes is shown in the diagram on this slide. In the source synchronous mode the PLL intentionally adds skew in order to match skew on the data path from points D to E. In all other modes the PLL strives to create zero skew from the source to the destination for that clock.
PTM Published on: 2012-05-29
