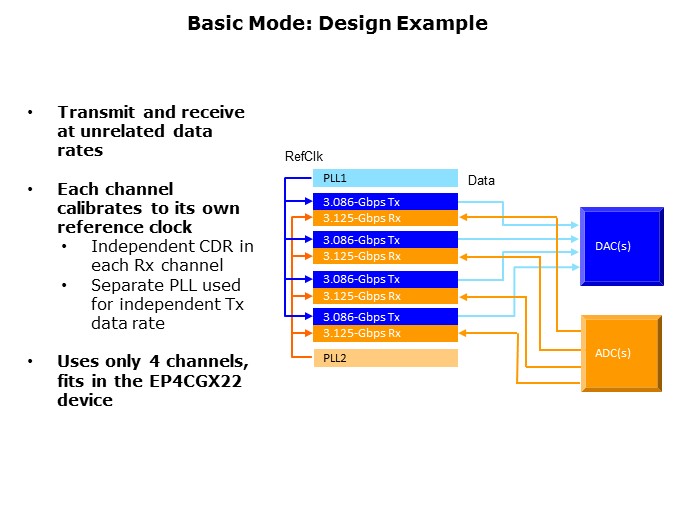

In the case of interfacing with ADCs and DACs, the specific advantage of the Intel® architecture is that it is possible to transmit and receive at different, independent, rates within each channel. With the Cyclone® IV GX, this could be implemented in as little as four channels. In fact, even more data rates can be implemented in this quad if a PLL were borrowed, as shown in the next example.
