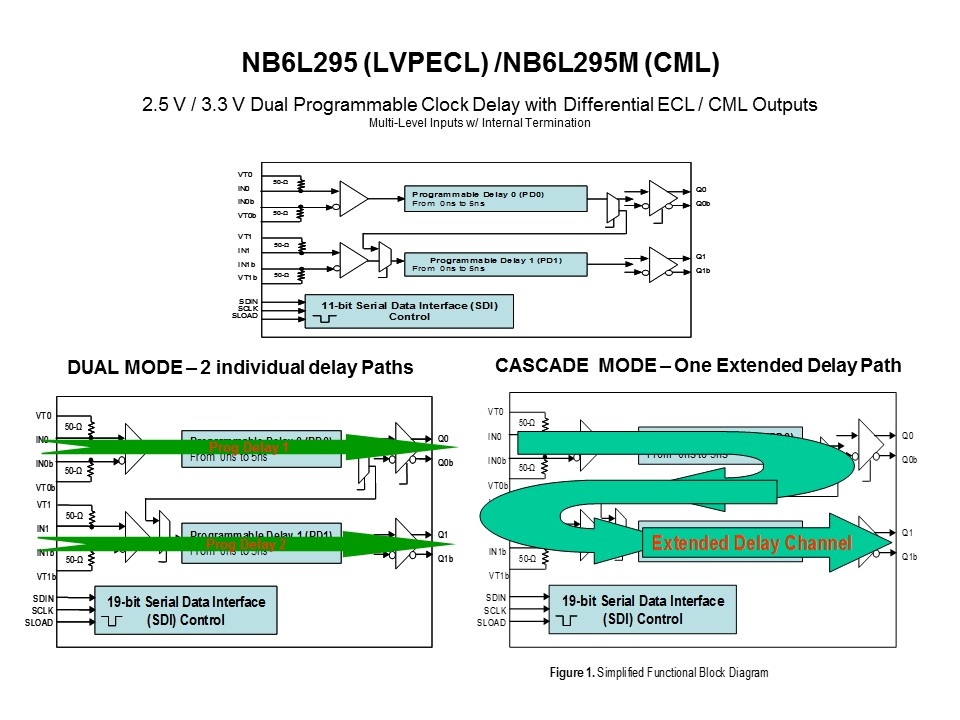

Delay devices are used to add delay to an input clock. In most devices this delay is configurable. In the device pictured above, there are two separate paths through the device. Each path has a configurable delay of 0 to 5 nanoseconds. This device can be operated in dual mode or cascade mode providing up to 10 ns of delay for a single signal.
