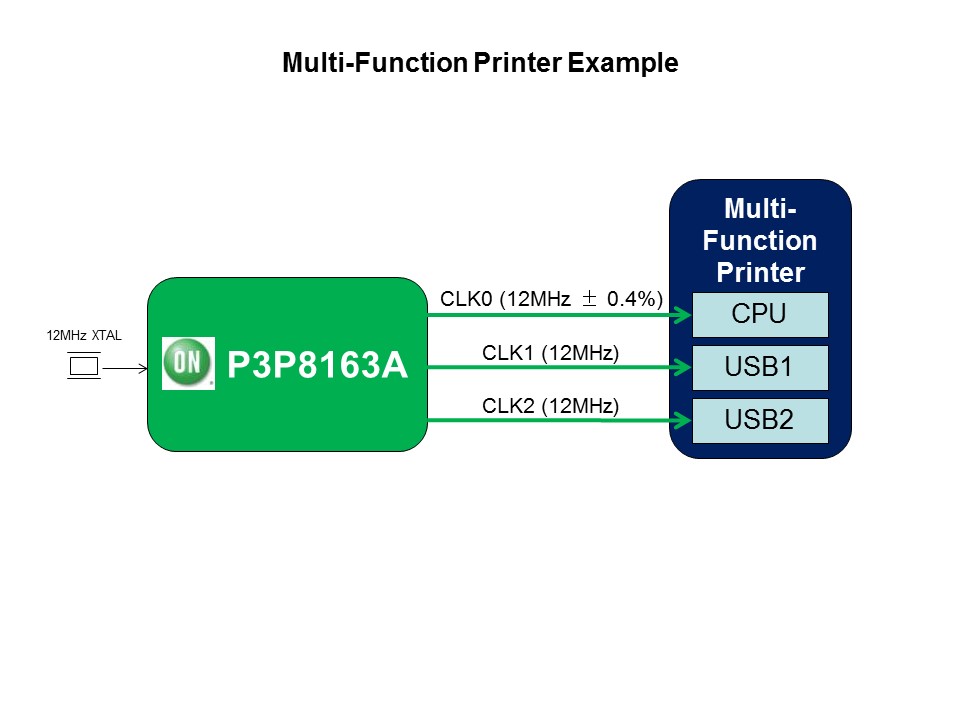

This slide shows a multi-function printer example that requires three clocks, one of which needs to needs to be a modulated signal in order to pass EMI certification. The P3P8163A supports a 12 MHz external XTAL input and generates two unmodulated 12 MHz signals for the two USB ports and one 12 MHz clock signal that is modulated at + or – 0.4%.
