Product List

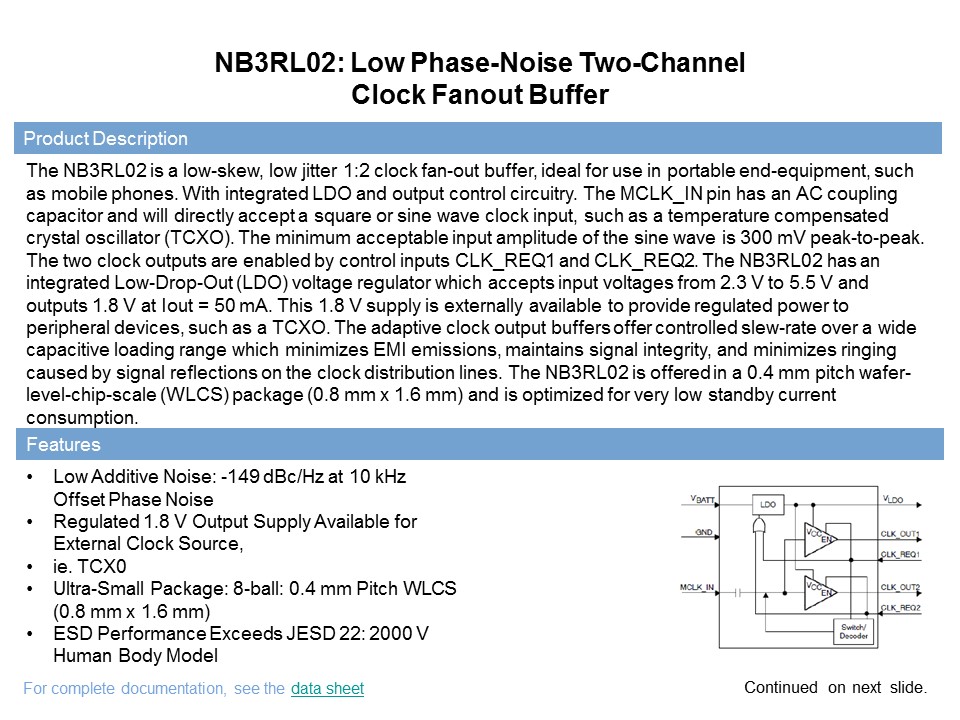

The NB3RL02 is a fanout buffer with 1 single-ended TCXO input and 2 single-ended 1.8 V outputs. The device also integrates an LDO which can provide 50 mA at 1.8 V. The frequency range of this device is 10 MHz to 52 MHz. As mentioned in a previous slide, it targets handheld devices and some Wireless applications.
PTM Published on: 2014-08-04
