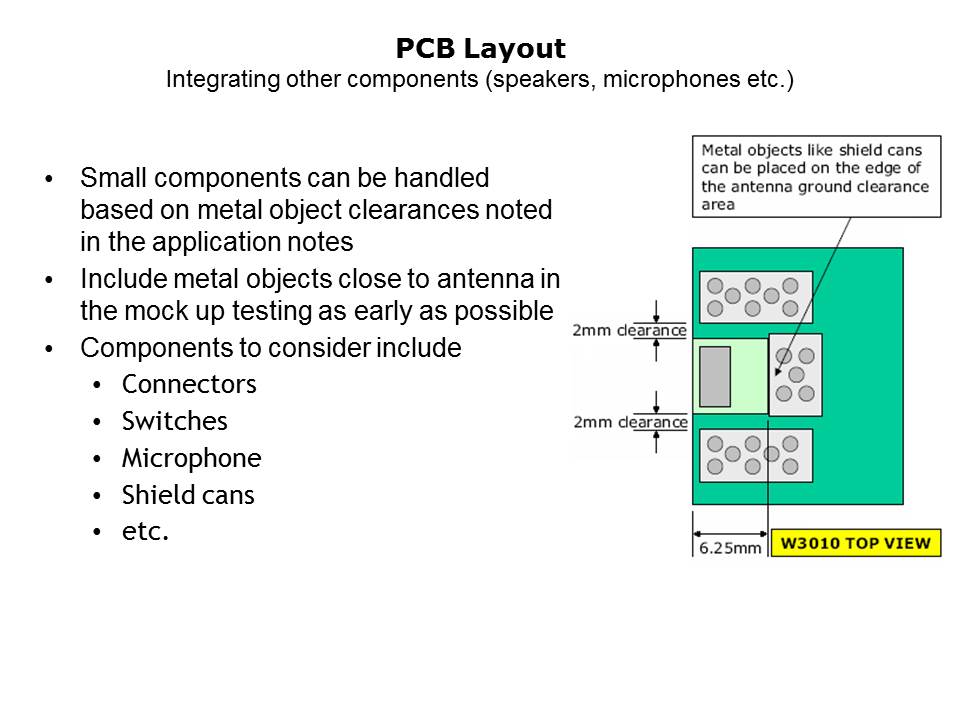

When integrating other components, it is recommended to follow the metallic object clearances which are noted in the application notes for the antennas. The metal components should be included in the mock up testing as early in the process as possible. Some examples of metal components to consider are connectors and switches, microphones, speakers, shield cans, etc.
