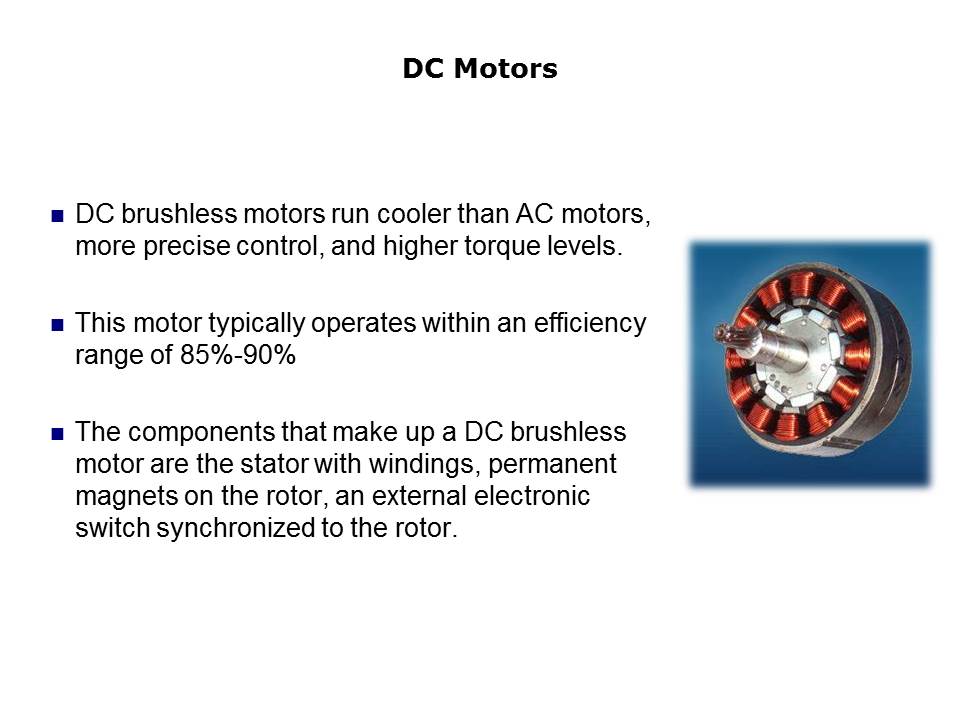

DC brushless motors run cooler than AC motors, have more precise control, and higher torque levels. The DC motor typically operates within an efficiency range of 85%-90%. The components that make up a DC brushless motor are the stator with windings, permanent magnets on the rotor, an external electronic switch synchronized to the rotor.
