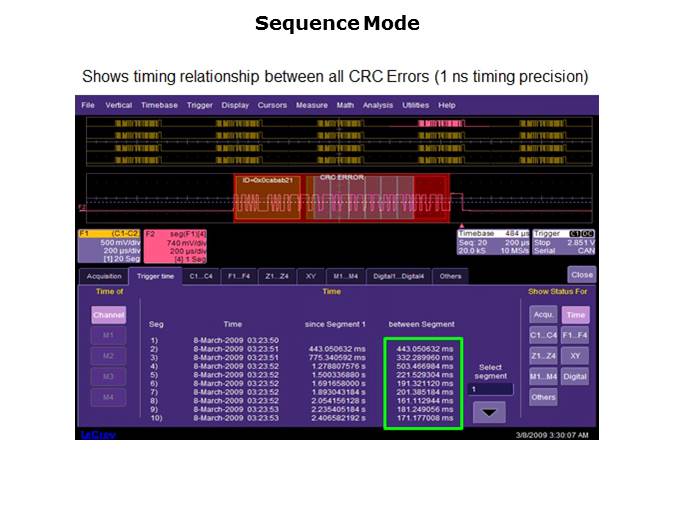

Shown on this slide is the time stamp and the between segments timing information for the CRC error waveform being analyzed. The precision of the dwell time between segments function is one nanosecond. Note the 160 millisecond timing anomaly in the table within the green box, as can be seen segment number eight has a time much different than the others.
