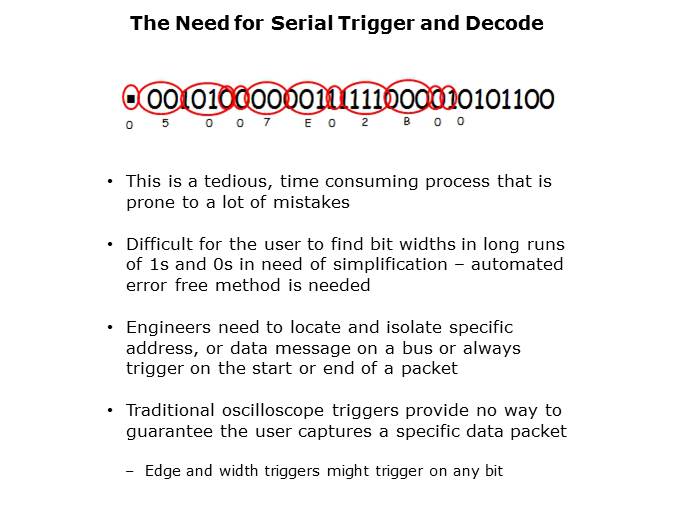

As stated, this is time consuming and prone to mistakes. It is very difficult to find the correct bit widths in long runs of ones or zeros. If users have a whole string of ones or a whole string of zeros, it’s very hard to determine the bit width. On traditional scopes, triggers provide no way to guarantee that the user is capturing the specific data value or packet.
