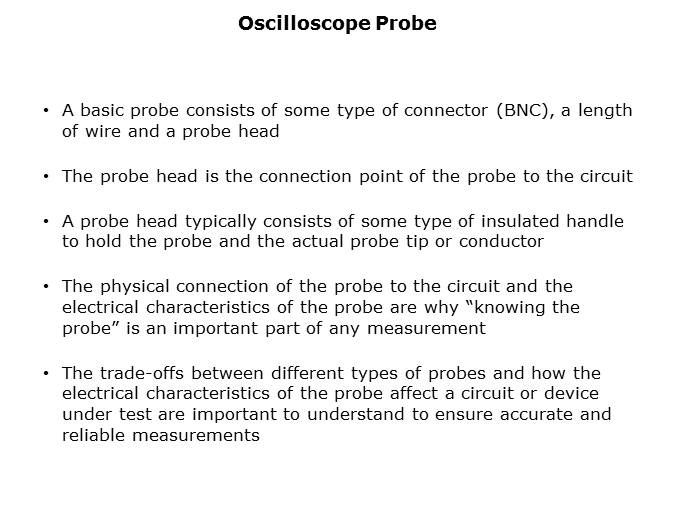

An oscilloscope probe is a connector and a length of wire with a probe head. The user connects the probe head to the circuit. The probe head typically has insulated handles which allow the user to safely hold it. The probe is very important in making measurements. There are trade-offs between the different types of probes, such as between passive probes and active probes.
