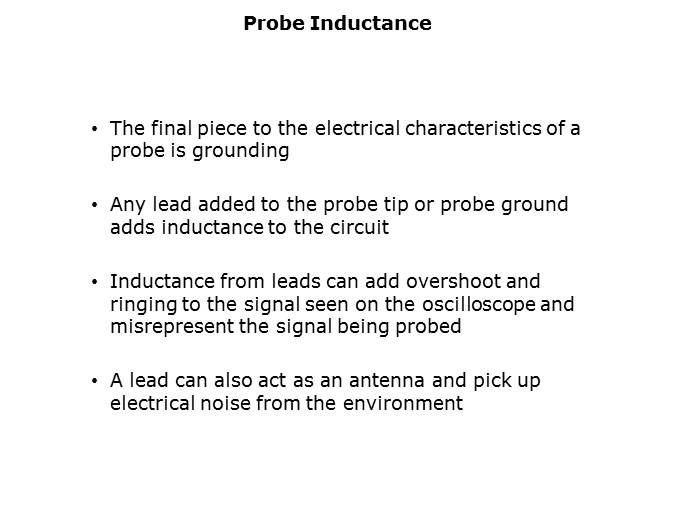

Inductance is another factor that comes into play in scope probes, typically on the grounding side of the probe. Any lead attached to the probe tip or ground adds inductance to the circuit which can cause problems, including overshoot and ringing. A very long ground lead can also act as an antenna and pick up electrical noise from the environment.
