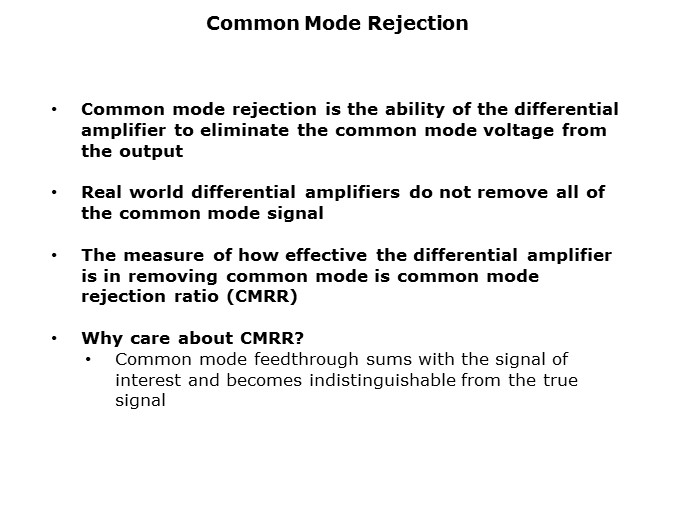

Common mode rejection is the ability of a differential amplifier to ignore the component which is common to both inputs. Real life differential amplifiers are not ideal and some of the common mode signal always leaks through to the output. The measure of how well a differential amplifier rejects the common signal is called common mode rejection ratio, abbreviated CMRR.
