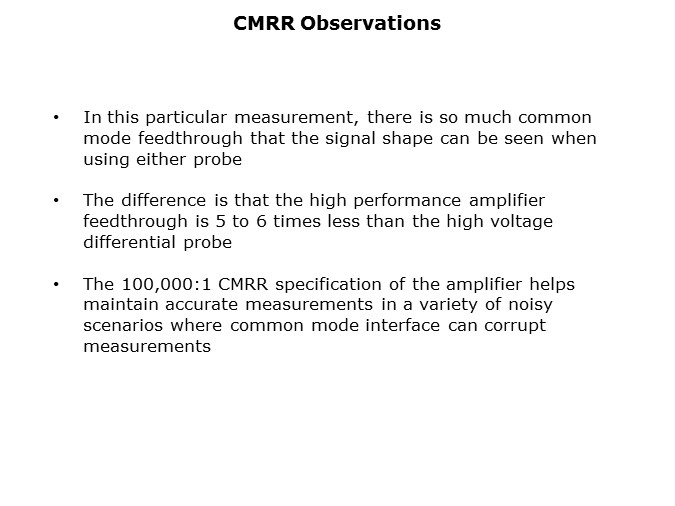

As seen in the previous examples, common mode feedthrough is still there, but it is much more apparent when using a non-amplified, passive differential high voltage probe. The 100,000:1 common mode rejection ratio of the amplifier helps maintain accurate measurements in a variety of noisy scenarios where common mode interference can corrupt measurements.
