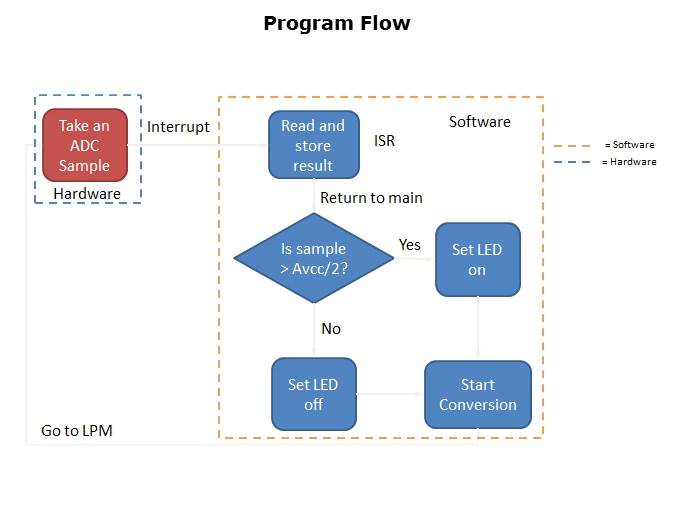

This flow chart shows the program flow as described in the previous slide. The slide also highlights the functions handled by the ADC module in hardware and the processing performed by the CPU. In this lab example since much of the post data processing is done in software, the device has a high active duty cycle.
