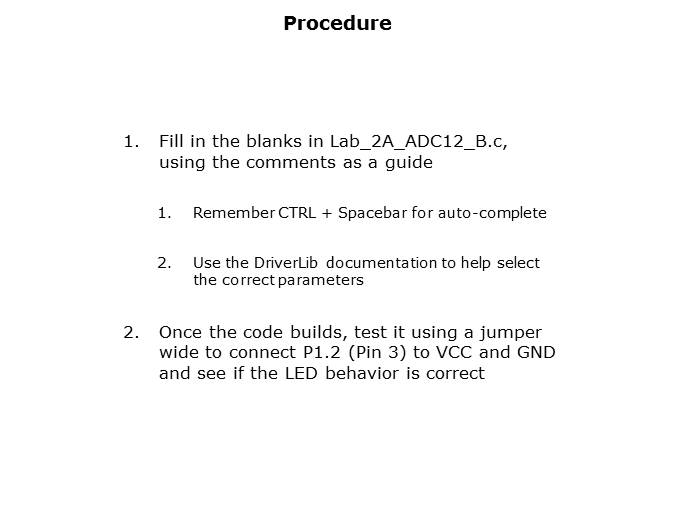

To begin the lab, open the source code LAB 2A ADC12B.c in the project folder. Use the comments as a guide and setup the ADC using DriverLib as explained in training module 4. Once the lab exercise is complete, test the code by tying the ADC input channel to VCC or Ground to check whether the LED turns on or stays off.
