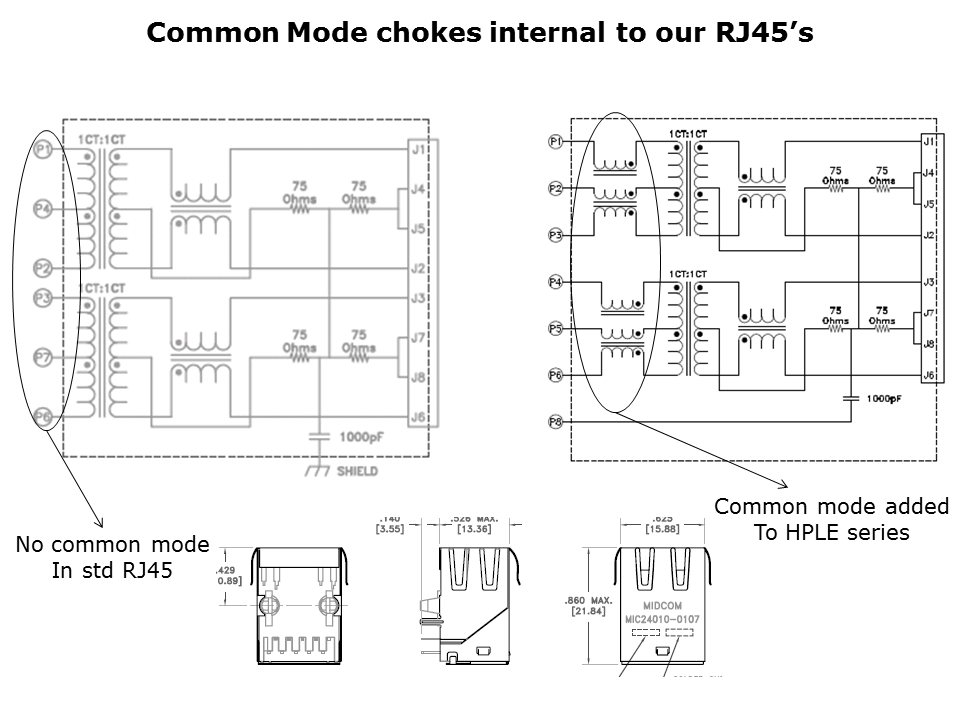

Würth Elektronik, Midcom has also included common modes on the PHY and connector sides of one family of RJ45 ethernet connectors. The HPLE (High Performance Low EMI) family of connectors has an added common mode choke on the connector side to solve the issue of clock harmonic noise further up the frequency spectrum. For more details see the product training module for the HPLE Series.
PTM Published on: 2011-11-11
