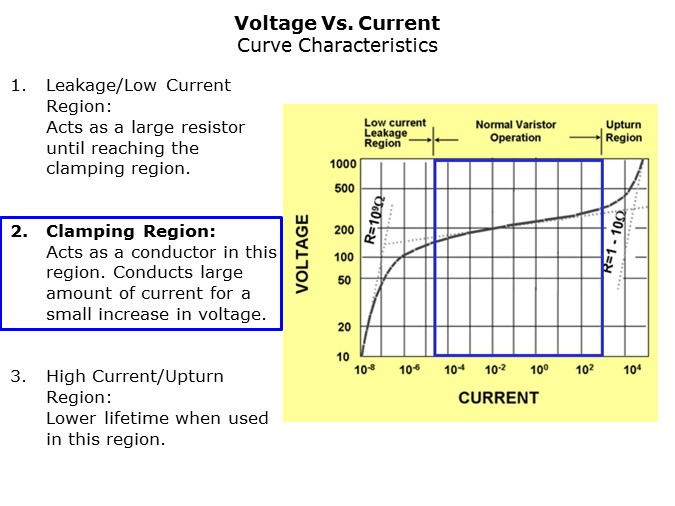

The second region is located in the center portion of the curve, shown inside the blue box. This is the clamping portion of the curve, where current begins to flow because of an overvoltage event that is taking place. It can be seen that the voltage does not change very much as the current increases through many decades. This is the normal operating range of an MOV.
