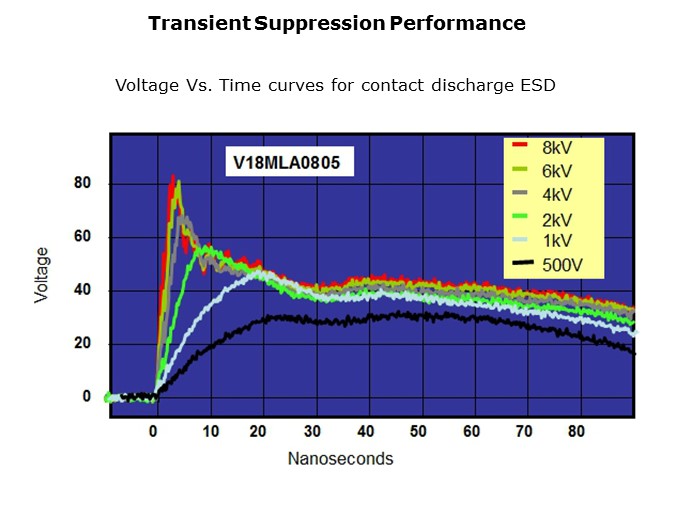

When a high speed ESD event first encounters the varistor, there is an overshoot of voltage that goes higher than the ultimate clamp voltage. The higher the ESD voltage, the higher the overshoot is going to be. The duration of the overshoot is less than 10nS and is usually ignored because of its short duration and limited impact on the protected circuit.
