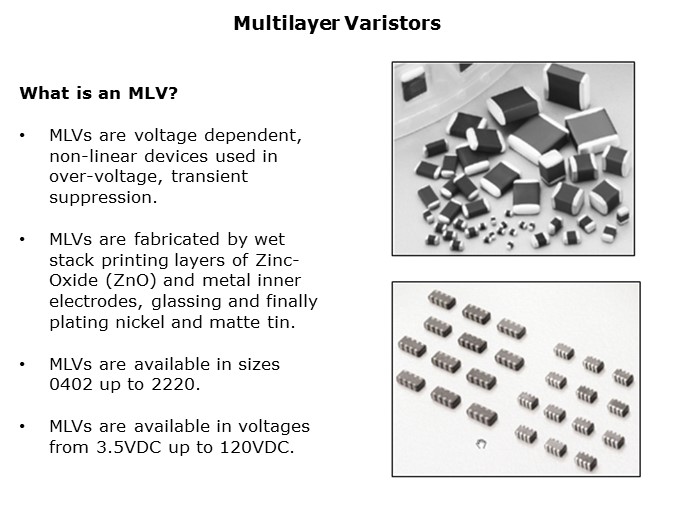

Multilayer Varistors, or MLVs, are electrically identical to the larger disc varieties previously mentioned. They clamp overvoltage events in the same manner as their larger cousins but are not capable of conducting as much transient current. They are made up of multiple layers of ceramic to squeeze as much performance from the ceramic material as possible from a small device size.
